This repository provides a reproducible, archival-quality pipeline to download, validate, transform, and document weekly shapefiles from the US Drought Monitor (USDM). The archive is structured using the BagIt 1.0 specification and includes:

  • Raw weekly shapefiles and text summaries
  • Cleaned, validated spatial data in GeoParquet format
  • Per-week ISO 19115-1 metadata in XML
  • Geometry validation logs
  • Weekly updating and manifest tracking

📂 View the US Drought Monitor archive listing here.

The goal of this repository is to draft a regulatory-grade archive of the US Drought Monitor that conforms with the Foundations for Evidence-Based Policymaking Act of 2018 (“Evidence Act”, Public Law 115–435), the Geospatial Data Act of 2018 (enacted as part of Public Law 115–254), and Executive Order 14303, Restoring Gold Standard Science. Given the regulatory role played by the USDM (e.g., 7 CFR 1416.205, 7 CFR 759.5), it is essential that an authoritative, well-documented, persistent, and findable archive of the USDM be established by a Federal agency. This work seeks to create a framework for such an archive.

📈 About the US Drought Monitor (USDM)

The US Drought Monitor is a weekly map-based product that synthesizes multiple drought indicators into a single national assessment. It is produced by:

  • National Drought Mitigation Center (NDMC)
  • US Department of Agriculture (USDA)
  • National Oceanic and Atmospheric Administration (NOAA)

Each weekly map represents a combination of data analysis and expert interpretation.

Note: This archive is maintained by the Montana Climate Office, but all analytical authorship of the USDM drought maps belongs to the named USDM authors.

🗂 Directory Structure

The resulting BagIt-compliant archive includes:

repository-root/
  ├── LICENSE                 # License for the repository (MIT)
  ├── README.Rmd              # Repository documentation (RMarkdown)
  ├── README.md               # Repository documentation (this file)
  ├── example-1.png           # Example figure using the data
  ├── usdm.R                  # Code to download, process, and archive USDM data
  ├── usdm.Rproj              # RStudio project file
  ├── usdm.html               # An HTML directory listing of the USDM Archive
  ├── usdm-manifest.json      # The directory listing of the USDM Archive
  └── usdm/                   # BagIt-compliant archive of USDM weekly data
    ├── bagit.txt               # BagIt version declaration
    ├── bag-info.txt            # Metadata about the bag archive
    ├── manifest-sha256.txt     # Checksums for integrity verification
    └── data/
      ├── raw/                    # Downloaded shapefiles (.zip)
      ├── summary/                # Weekly summary XML files
      ├── parquet/                # Cleaned spatial data (.parquet)
      ├── metadata/               # ISO 19115 metadata XML files
      └── quality/
        └── geometry_validation.csv  # Log of geometry validation issues

🧪 Analysis Pipeline

This R pipeline (usdm.R):

  1. Downloads weekly USDM shapefiles and XML summaries.
  2. Validates geometries using the S2 Geometry Library via sf::st_is_valid(), and logs invalid features for review.
  3. Cleans and repairs shapefile geometries and converts them to the GeoParquet format.
  4. Writes ISO 19115-1 metadata for each weekly dataset using the geometa package.
  5. Builds a BagIt structure with SHA-256 checksums to ensure archival integrity.

🔁 Weekly Updating

The pipeline automatically determines the most recent USDM date available and:

  • Only downloads new or modified files.
  • Uses file checksums to avoid unnecessary re-processing.
  • Appends new validation issues to a persistent quality log.

Use the usdm() function to process a specific date, or usdm_get_dates() to get all valid weekly dates.

🛠️ Dependencies

Key R packages used:

  • sf, terra, arrow, tidyverse, curl
  • geometa for ISO metadata
  • digest for checksum computation

The script installs all required packages using the pak package.

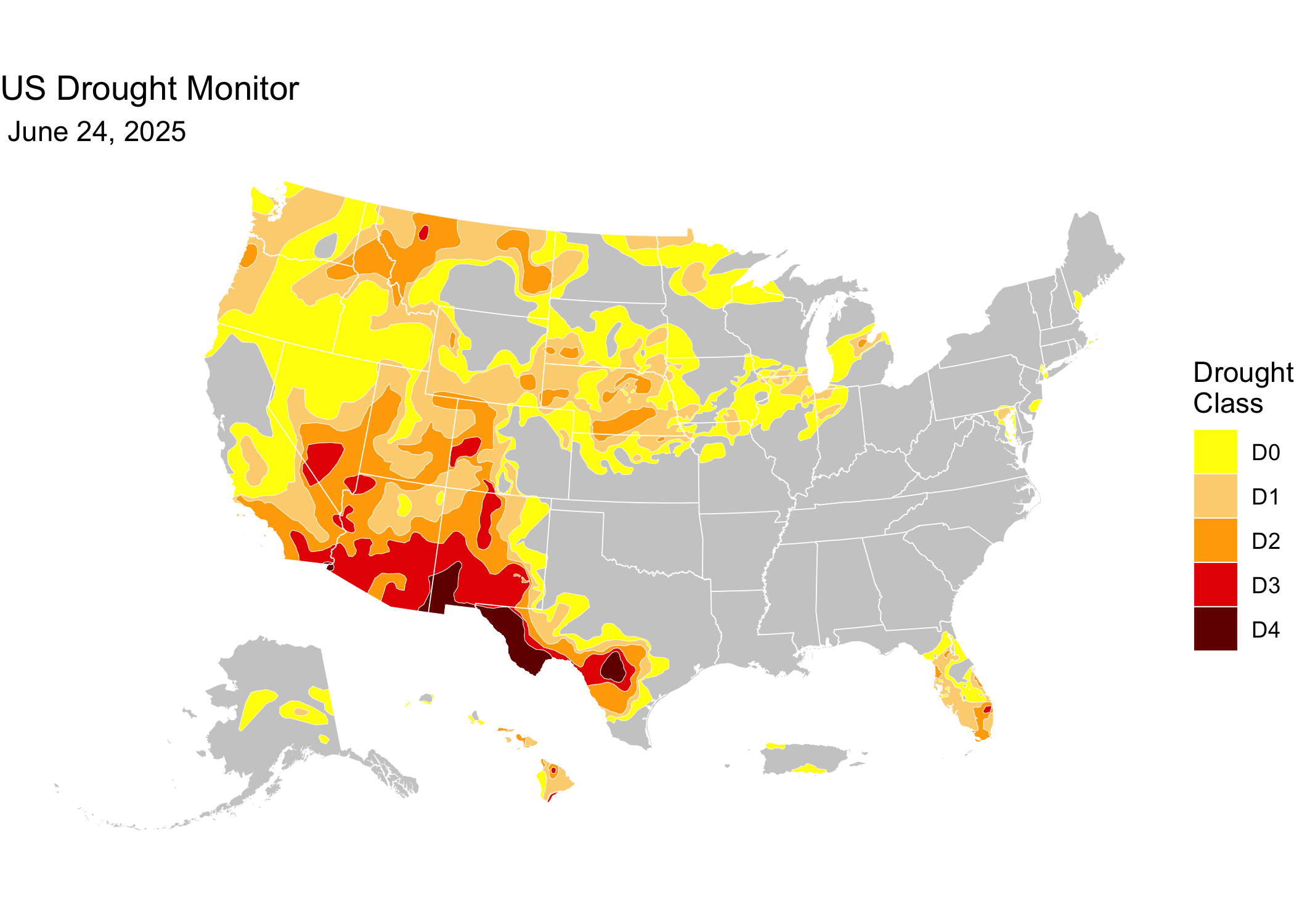

📍 Quick Start: Visualize a Weekly USDM Map in R

This snippet shows how to load a weekly GeoParquet file from the archive and create a simple drought classification map using sf and ggplot2.

# Load required libraries
library(arrow)
library(sf)
library(ggplot2) # For plotting
library(tigris)  # For state boundaries
library(rmapshaper) # For innerlines function

## Get latest USDM data
latest <-
  jsonlite::fromJSON(
    "usdm-manifest.json"
    )$path |>
  stringr::str_subset("parquet") |>
  max()
# e.g., [1] "usdm/data/parquet/USDM_2025-05-27.parquet"

# Read a weekly GeoParquet file as an sf object
# Use tigris::shift_geometry to shift and rescale Alaska, Hawaii, and
# Puerto Rico in a US-wide sf object
usdm_sf <-
  latest |>
  sf::read_sf() |>
  # tigris::shift_geometry only works consistently on POLYGON geometries
  sf::st_cast("POLYGON", warn = FALSE, do_split = TRUE) |> #
  tigris::shift_geometry()

states <-
  tigris::states(cb = TRUE,
                 resolution = "5m",
                 progress_bar = FALSE) |>
  dplyr::filter(
    !(NAME %in% c("Guam",
                  "American Samoa",
                  "United States Virgin Islands",
                  "Commonwealth of the Northern Mariana Islands"))
  ) |>
  sf::st_cast("POLYGON", warn = FALSE, do_split = TRUE) |>
  tigris::shift_geometry()

# Plot the map
ggplot(usdm_sf) +
  geom_sf(data = sf::st_union(states),
          fill = "grey80",
          color = NA) +
  geom_sf(aes(fill = usdm_class),
          color = "white",
          linewidth = 0.1) +
  geom_sf(data = rmapshaper::ms_innerlines(states),
          fill = NA,
          color = "white",
          linewidth = 0.2) +
  scale_fill_manual(
    values = c("#ffff00",
               "#fcd37f",
               "#ffaa00",
               "#e60000",
               "#730000"),
    drop = FALSE,
    name = "Drought\nClass") +
  labs(title = "US Drought Monitor",
       subtitle = format(usdm_sf$date[[1]], " %B %d, %Y")) +
  theme_void()

📝 Citation & Attribution

Citation format (suggested):

US Drought Monitor authors. US Drought Monitor Weekly Maps. Data curated and archived by R. Kyle Bocinsky, Montana Climate Office. Accessed via GitHub archive, YYYY. https://sustainable-fsa.github.io/usdm/

Acknowledgments:

  • Map content by USDM authors.
  • Data curation and archival structure by R. Kyle Bocinsky, Montana Climate Office, University of Montana.

📄 License

  • Raw USDM data (NDMC): Public Domain (17 USC § 105)
  • Processed data & scripts: © R. Kyle Bocinsky, released under CC0 and MIT License as applicable

⚠️ Disclaimer

This dataset is archived for research and educational use only. The National Drought Mitigation Center hosts the US Drought Monitor. Please visit https://droughtmonitor.unl.edu.

👏 Acknowledgment

This project is part of:

Enhancing Sustainable Disaster Relief in FSA Programs
Supported by USDA OCE/OEEP and USDA Climate Hubs
Prepared by the Montana Climate Office

📬 Contact

R. Kyle Bocinsky
Director of Climate Extension
Montana Climate Office
📧 kyle.bocinsky@umontana.edu
🌐 https://climate.umt.edu
